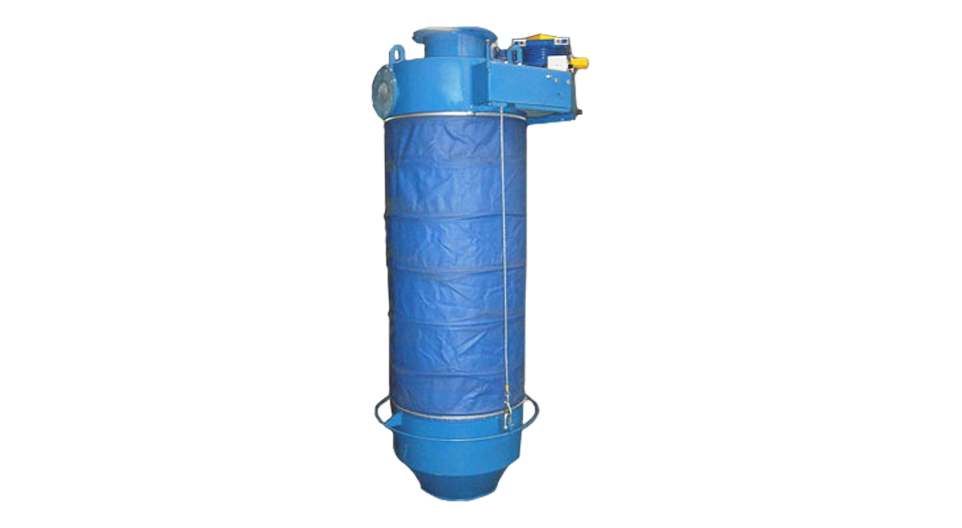

Telescopic Bulk Loaders

Key Features

  • Robust fabricated construction
  • Compact design with integrated dust control connection
  • Semi-automatic fill level chasing feature
  • Fully enclosed product fill and air return pathways
  • Standard configuration accommodates up to 3 metre travel
  • Flexible design allows for inlet connections and travel to suit most applications
  • Assorted options available covering most installation requirements

Rotolok and AMD-Rotolok, our South African subsidiary, have developed, tested and manufactured a range of Telescopic Bulk Loaders (TBL), calling on more than 10 years’ experience from AMD-Rotolok, who have supplied TBLs to the Iron & Steel, Cement and Quarrying industries throughout South Africa and Sub-Saharan Africa.

All units operate in harsh and sometimes environmentally demanding locations and naturally, they meet the need for robustness, durability, ease of service and importantly, control of dust.

Our Rotolok designers have incorporated all the attributes of the AMD-Rotolok TBL but have also ensured that it complies with EU and USA legislation as well as the requisite operating standards.

  • Winch Head

    Mild steel fabrication, industrial hammer finish

  • Outlet Body

    Mild steel fabrication, industrial hammer finish

  • Buckets

    Mild steel

  • Wire Ropes

    Galvanised mild steel

  • Webbing Straps

    Resin Impregnated polyester

  • Dust Shroud

    500gsm PVC coated nylon, nylon support rings

  • Pulley Sheaves

    Cast iron with phosphor bronze bushes


  • Inlet flange hole pattern & flange Ø
  • Inlet diameter (200, 250 or 300mm Ø)
  • Exhaust flange tube size & hole pattern
  • Stainless steel
  • Rectangular inlet (up to 275 x 275mm)
  • Rectangular exhaust (up to 125 x 125mm)


  • Stainless steel
  • Special connection
  • Vibration (electric/ pneumatic)
  • Linatex covering (site serviceable)
  • EPDM covering (chemical bonded)
  • Rotolok “Level Lok” probe
  • Other probe types


  • Stainless steel
  • Thicker material


  • Overall height
  • Travel (up to 3m)
  • Alternate limit switch supplier/ spec.
  • Lift cables & fittings in SS
  • Faster/slower operation
  • Alternate gear motor supplier/spec.
